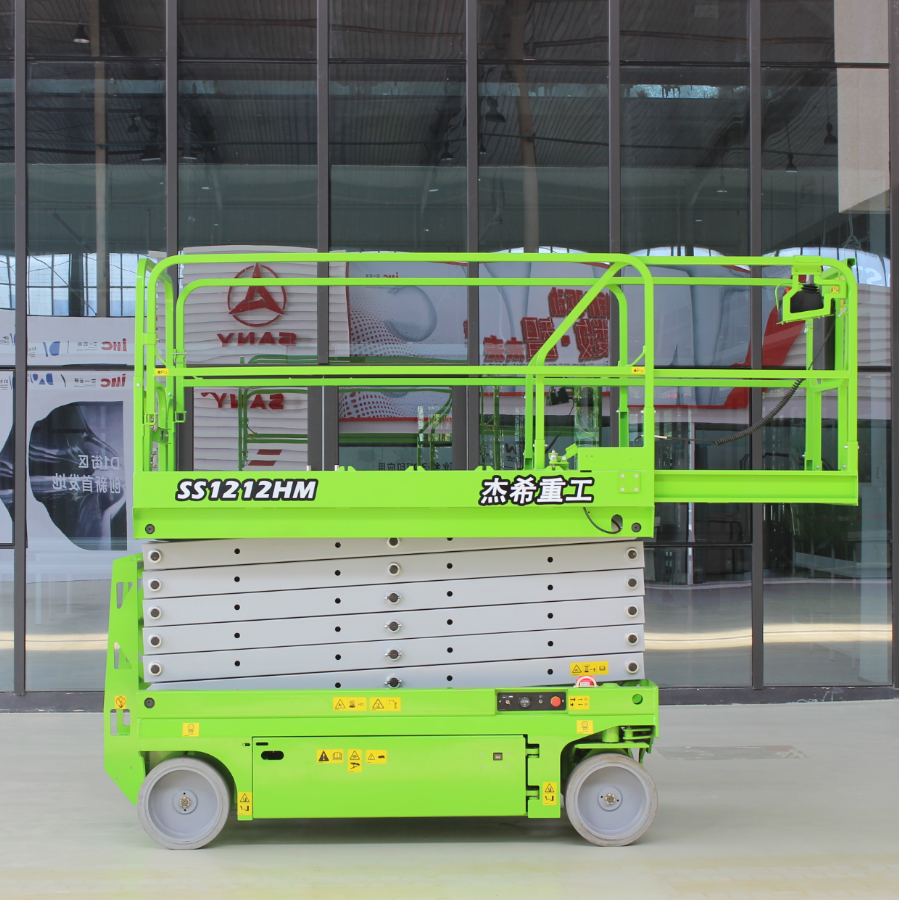

12m scissor manlift adopts electric to drive the hydraulic motor,the Max.working height 13.8m,the maximum load is 320kg,it is suitable for indoor flat ground and high altitude operation environment with high environmental requirements such as shoping malls,house residential areas,factory or workshop for building maintenance and so on etc..
Main design:
- Forklift hole on the front for loading and discharging.
- Unique pothole protection design.
- Unique design of bidirectional retracting scissor arm.
Mainly Technical data:
| Model | SS1212HM |
| Dimentions | Metric |
| Max.Working Height | 13.8m |
| Max.Lifting Platform Height | 11.8m |
| Platform Length | 2.27m |
| Platform Length-Extended | 3.17m |
| Platform Extension | 0.9m |
| Platform Width | 1.14m |
| Height -Unfolded | 2.35m |
| Height-folded | 1.82m |
| Wheelbase | 1.87m |
| Min. Ground Clearance-stowed | 10cm |
| Min. Ground Clearance-Raised | 2cm |
| Productivity |
| Platform capacity | 320kg |
| Extension platform capacity | 120kg |
| Drive Speed | 3.5km/h |
| Gradeability | 25% |
| Raise/Lower Speed | 68/42sec |
| Turning Radius(Inside/outside) | 0/2.1m |
| Tire | 40.5x12.7cm |
| Power | Hydraulic Electric |
| Engine | Optional( Perkins,Koher,Deutz,Commins,Yanmar) |
| Hydraulic Oil Tank Capacity | 25L |
| Machine Total Weight | 2898KG |
| Bettery | 24V/260Ah |
Packaging & Shipping
With Jesh Standard packing, hard plastic bag to cover the whole machine and with Wooden box load into container.
For a 40' Container can be load 6 units for this 12m self propelled scissor manlift.
Our Warranty and Services
Long term warranty: 5 years for the main structural,2 years for the whole machine.
Service : Our engineers door to door service if you make bulk order , also we can technical support you online.I
Company Information
Hunan JESH Heavy Industry Co.,Ltd is an entrepreneurial enterprise specializing in R&D, manufacturing, sales and service of aerial working equipment. Our mission is to create the most professional aerial working equipment manufacturer and provide our equipment with safer, smarter and more efficient on aerial working solutions in the world. The company aimed at the value of integrity ,mutual-sharing, win-win and innovation, people- oriented that create value for customers as the center .
Innovation ability and information construction was highly valued by JESH. As National high-tech enterprise, since recently two years, the company has obtained more than 40 authorized patents, 11 verified invention patents and more than 20 applied state patents. The company has developed a cloud platform, which can realize cloud management device and cloud services. The company has launched the management systems which including PLM, ERP, CRM ,etc. More than 60% of the company's technical personnel, made the construction of its own products and the protection of intellectual property rights for system . Planning to be listed on the technology and innovation board within 5 years, and developing to be the top 3 in domestic industry.
